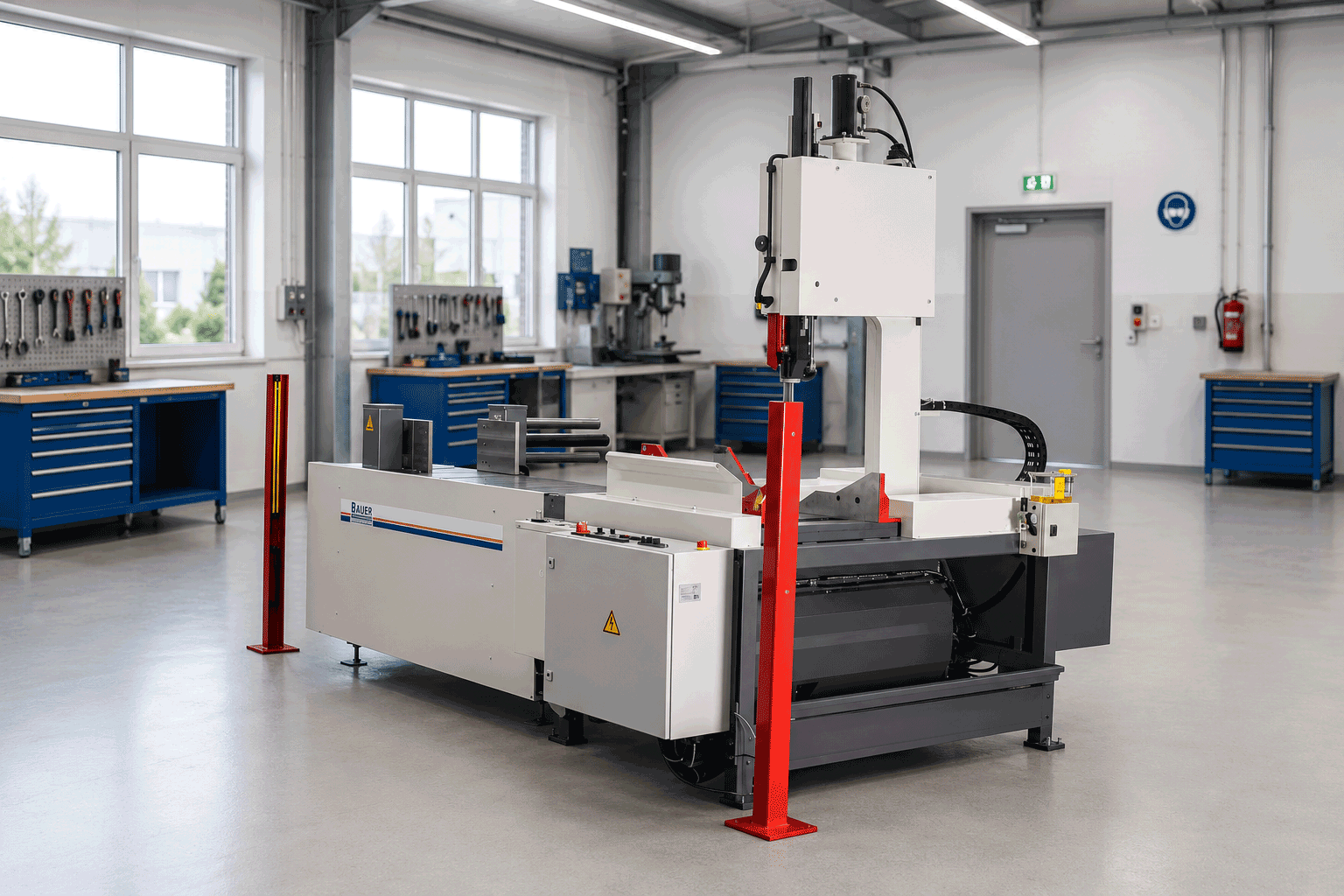

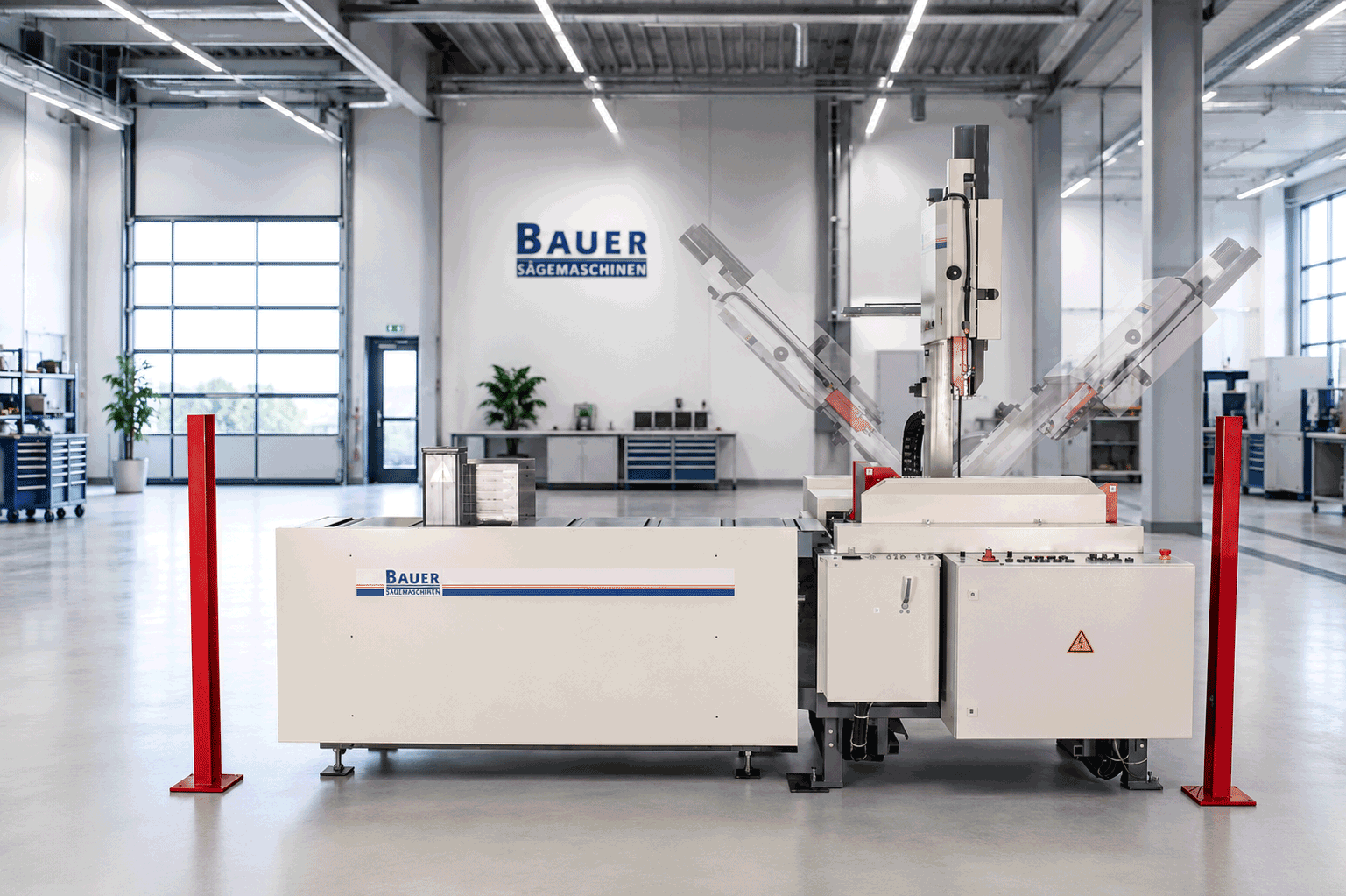

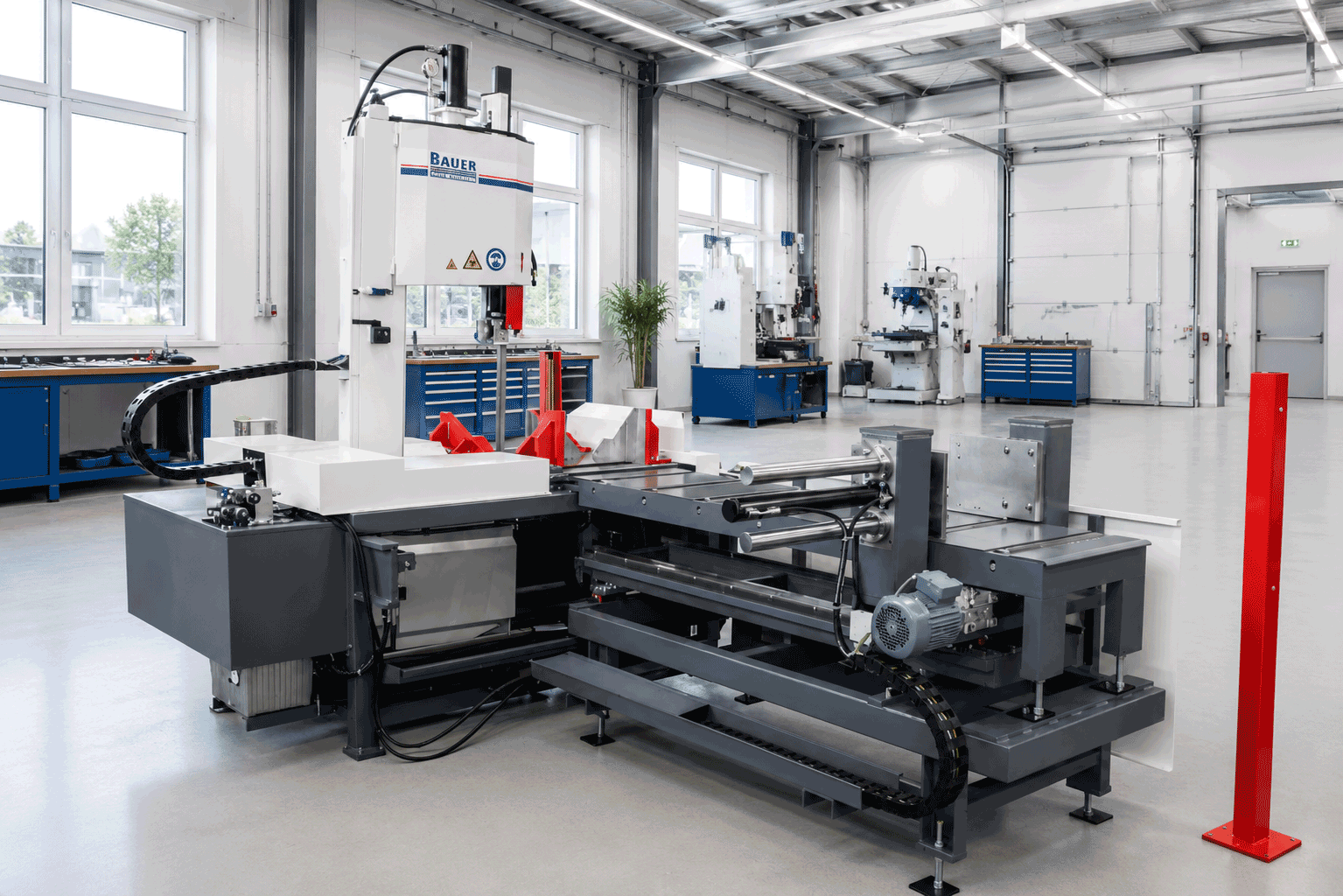

VG 450 L ZA-2 – The fully automatic mitre bandsaw for maximum productivity

When it comes to precise mitre cuts, high volumes, and economical production, the BAUER VG 450 L ZA-2 is the ideal solution. This fully automatic mitre bandsaw combines the proven sawing technology of the VG 450 L with a powerful material feed system, enabling virtually unmanned sawing operations.

The integrated automatic material feed independently transports the material to the cutting point and positions it precisely for every single cut. At the same time, the machine automatically monitors the end of the material. The sawing process is completed with high process reliability.

A particular highlight is the ability to manufacture frame components with mitre cuts fully automatically. Different cutting angles are executed with precision and repeatability, making the VG 450 L ZA-2 ideal for window, door, facade, steel, and metal construction. Angle profiles, rectangular tubes, square tubes, round tubes, and solid material can also be processed reliably and economically.

The hydraulic mitre adjustment allows for cutting angles from 45° left to 60° right, meaning numerous frame structures can be produced without manual re-clamping.

Your advantages at a glance

• Fully automatic material feed with gripper system
• Automatic material end monitoring
• Fully automatic sawing of frames with mitre cuts
• Ideal for angle profiles, rectangular and round tubes, and solid material
• High repeatability for series production
• Hydraulic vice clamping with infinitely adjustable clamping pressure
• Precise saw blade guidance for exact cutting results
• PLC control with display and simple operation
• Two infinitely selectable saw blade speeds
• Robust industrial design for continuous daily use

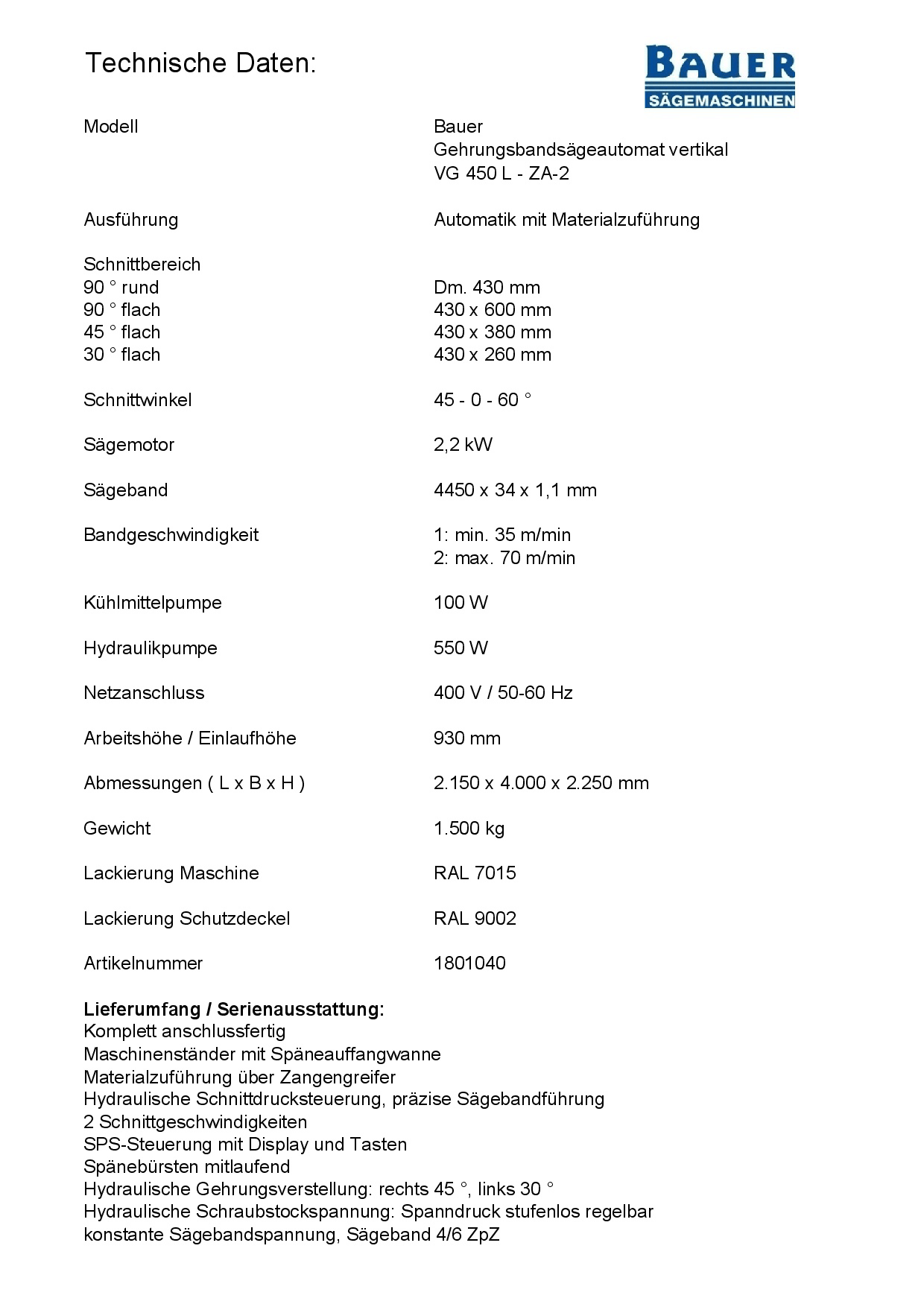

Large cutting capacity

The VG 450 L ZA-2 processes workpieces up to:

• 430 mm round material
• 430 × 600 mm at 90°
• 430 × 380 mm at 45°
• 430 × 260 mm at 30°

This makes the machine suitable for both individual cuts and the economical series production of a wide variety of steel and aluminium profiles.

For maximum cost-effectiveness

Thanks to the automatic material feed, the VG 450 L ZA-2 handles the entire feed process independently. The operator only needs to load the material and start the program. While the machine reliably performs cut after cut, personnel can focus on other tasks. This reduces non-productive time, increases productivity, and ensures consistently high cutting quality.

BAUER VG 450 L ZA-2 – Fully automatic mitre cuts with maximum precision and efficiency. Ideal for companies looking to automate their production efficiently while maintaining the highest standards of quality and repeatability.
